MODEL:

The most flexibile and well know  solutiion for round parts surface finishing, with the possibility of being configured to work a wide range of products, including ones particularly small in diameters or short in length.

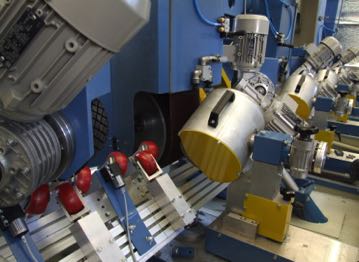

This machine It is available, in different alternative configurations, with one or more grinding belts or polishing units and completed with handling equipment to upkeep productivity in full automatic cycle.

STX - Centerless grinder and polisher

Applications

For medium and high volumes of productivity, model STX find application in all cases where the products are round shaped, typical users are manufactures of furnitures, stainless steel service centers, pipe or bars manufacturers.

Possible applications are:

- Welded tubes  - Cosmetic finishing, satin or mirror polish.

- Seamless pipes - defects removal and roughness improvement

- Cylinders grinding to dimension.

- Bars - grinding of extra material, defects removal and roughness improvement with homogeneous looking

For model STX

Machine

Model STX can be fuly customized according to customer needs.

The machine is offered with dedicated product HANDLING EQUIPMENT to work from bundle to bundle, this is chosen according to dimensions of the products to be processed.

ACCESSORIES

Complete the supply required filtration systems, diameters measurement devices, packing machine for the products into plastic bags.

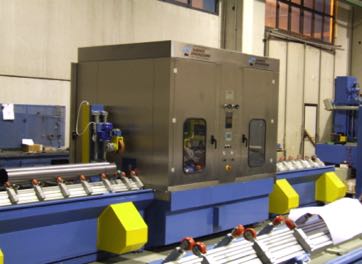

SAFETY Sound proofing enclosures and Protection devices Close the working area and prevent the access to the operator during automatic working cycle.

Configuration

STX - Available with different transport system and workable range.

Tubes, pipes and bars, bundle to bundle

From 6 to 60 mm  -  From 20 to 220 mm

Length from 250 mm up to 30 mt (according to transport system)

Tools used:  Grinding belts or polishing wheels.

Dry with dust collector or wet with coolant liquid filtration system.

MODEL

Workable products

Workable dimensioms

Diameters

Length

Tools used

Working conditions

STX  Technical

Carachteristics

Alternatives to STX

Model ST semi-automatic centerless grinder and polisher

Mdel STO heavy grinder. For  a products of big diameter see as alternative.

Model PLS or PLN for in-line polishing

AUTOMATIC CYCLE controlled by PLC advanced functions and help on line, the whole monitored and managed by touch screen.

AUTOMATIC ADJUSTMENT of the whole machine on the diameter to be worked  to eliminate simensional changeover time  and to monitor the correct positioning of each element, this operation is performed fully automatic mode with the simple input of diameter value.

STX is provided with an ADVANCED CONTROL SYSTEM of THE WORKING PRESSURE, adjustable independently for each unit according to the required performances and tools used.

Advanced

Automation
