MODEL:
This machines are optiomal candidate to be introduced in any mills for long products, developed to be installed directly inside a production line, this model are carachterised by a compact desing and the maximum flexibility in set up to be introduced easily in any existing or new line.

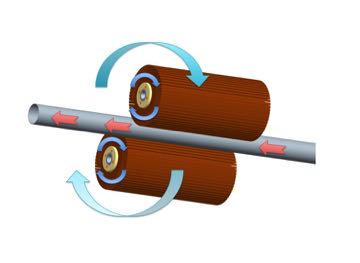

PLS Serie is based on anorbital concept, where the tools are rotating around the products to be worked while these are feeded throguth the machine.
The system allow the work of round abrs and tubes also in case of endless products and a required limited resources in term of handling equipment and spaces.

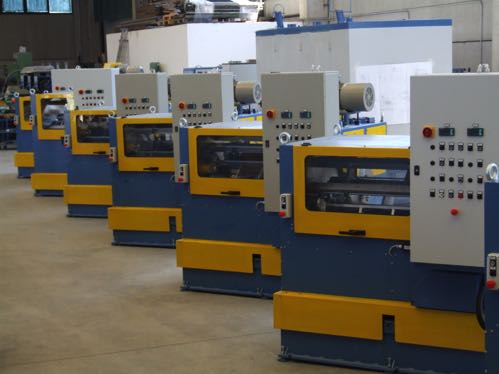

PLS - Orbital polisher
Applications
Possible applications are on any round product, either seamless or welded tubes, bar or wire, in case of bar to bar, coil to coil or coil to bar systems.
The target results can be for example:
- Cosmetic finishing.
- Defects removal
- Roughness improvement
- Reduction of noise during NDT.
- Cleadning from oxide layer, rust or impurities
- Removal of spirals or machingin marks
For model PLS
Features
PLS machines are offered as stand alone solution with filtration unit or with dedicated handling system to be installed in line and/or to work automatically from bundle to bundle.
With all the functions required to match any new or existing installation, such as.
Machine Height adjustment on the product center.
Tools open and close stroke on the diameter
Automatic recovery of tools wear.
Automatic adjustment of tools working pressure.
Step-less adjustment of rotation speed of the machine and of
the tools.
GRAPHIC INTERFACE
A touch screen panel through a friendly graphic interface will help the operator to supervise the production cycle and to make localised fine tuning of the machine during working operations.
A SIZE for EACH SCOPE
PLS is available in theree different sizes and with different capacity accroding to performance requreid and speed of the line, and in case is required more machines can be installed in sequence.
Round products
PLS- Available with different capacity and dimensions
Tubes, pipes and bars, bundle to bundle, coil to coil, before cut to length
From 6 to 114 mm - From 20 to 220 mm (Other on demand)
Length from 2,5 mt up to endless (according to transport system)
Polishing wheels with different length according to model 300 - 600 -1200 mm in lenght
Dry with dust collector .
MODEL
Workable products
Workable dimensioms
Diameters
Length
Tools used
Working conditions
PLS Technical
Carachteristics
Alternatives to PLS
