MODEL:

Centerless system for the finishing of round products available with grinding belts units or polishing units.

This machine available in different alternative configurations. is the classic version fo the model ST with semi automatic positioning system and modular composition.

The machine can be completed with numerous optional to better match the final production requirements and can be upgraded with different level of automation.

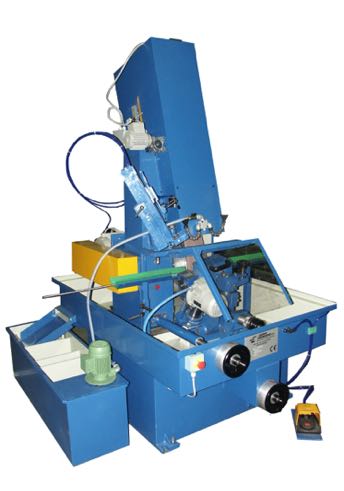

ST - Centerless grinder and polisher

Applications

This model is offered in different configurations to high volumes end users such as stainless steel service centers, pipe or bars manufacturers and in cases where an high productivity is required.

Possible applications are:

- Tubes used for funriture and decoration purposes

- Welded tubes - Cosmetic finishing, satin or mirror polish.

- Seamless pipes - defects removal and roughness improvement.

- Bars - for roughness improvement.

For model ST

Max

The machine is studied to limit initial investment reducing automation and automatic set up, but keeping same power and capacity of the STX model.

UPGRADE for GROWING BUSINESS

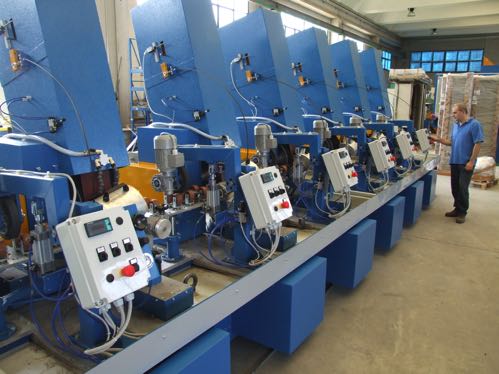

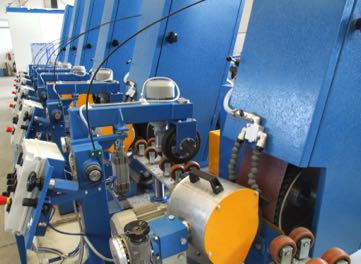

This machine is offered as single unit or modular system with higher capacity.

Will be possible to upgrade the system adding more units in second time in case the requirement in term of volumes will increment.

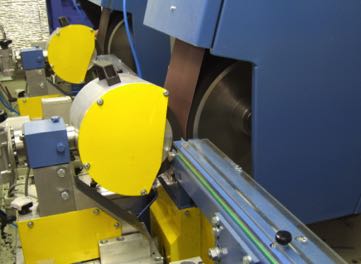

Are also availble COMBO units where is possible to install either a grinding belts or a polishing wheel, to allow tp perform either satin finish or mirror polishing on the same unit.

HANDLING

different type of handling can be considered and also added in a second type from more basic V guides to roller conveyors, loading and unlaoding table or other handlign to integrate the solution on existing lines.

ANCILLARY EQUIPMENT

The supply is completed with fitlration system or other equipment accroding to machine dimensions and capacity.

Flexibility in finishes

ST - Available with different transport system and workable range.

Tubes, pipes and bars, bundle to bundle

From 10 to 60 mm - From 15 to 114 mm

Length from 250 up to 12.000 mm (according to transport system)

Tools used: Grinding belts or polishing wheels.

Dry with dust collector or wet with coolant liquid filtration system.

MODEL

Workable products

Workable dimensioms
