MODEL:

Heavy duty machine for the grinding and polishing of flat products, working simultanueously from the top and from the bottom of the parts, with

This model is offered in different configurations to high volumes end users such as stainless steel service centers, pipe or bars manufacturers and in cases where an high productivity is required.

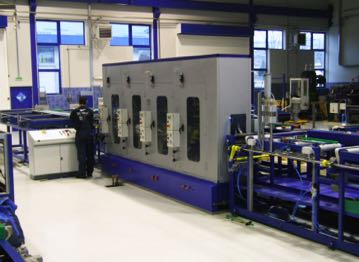

SPX - Flat tubes and bars grinder and polisher

Applications

Most typical applications are.

- Welded tubes - Cosmetic finishing, satin or hairline, mirror polishing.

- Profiles and extrusions

- Bars - grinding of extra material, defects removal and roughness improvement.

For model SPX

Finishign of

The most advanced solution dedicated to work on long flat products such as tubes and bars.

SPX is a full automatic system working from bundle to bundle.

The units divided in couples, works simultaneously on two faces of the products, with controlled pressure in order to use an high but balance the working force and to upkeep the same effect on the products avoiding overburning or bending.

The machine is able to work on more pieces simultaneously on two faces or in case of more units to work the piece on 4 faces in one pass.

The cycle is completely automatic and take care of the loading and driving of the products if these are even unstraight.

The whole machine set up, simple and intuitive, keeps as reference the products centre, and is obtained by simply input of the dimensions to be worked.

Special design that take care of many aspects of the working process, despite big dimensions of units and structure this machine is equipped with a very fine regulation of the working pressure and with the possibilty to set up the machine for fine polishing ofr for aggressive stock removal

Another aspect particularly improved is the treatment of the coolant liquid and mud generated during the working process, where all the mechanical parts are separated from the working area for better cleanness of the machine and to reduce maintenance time.

On demand is possible to have single products packing system with plastic bag or protective foiling.

FLAT products
