MODEL:

The most flexibile solutiion for round products, with the possibility of being highly customized on specific production needs.


This machine is offered with one or more grinding belts and/or polishing units and completed with automatic handling.


Model STX can be a stand alone solution to work from bundle to bunfle or can be integraed with other equipment.


The machine particularly can be set up to work products also with  small  diameter anr short in length.

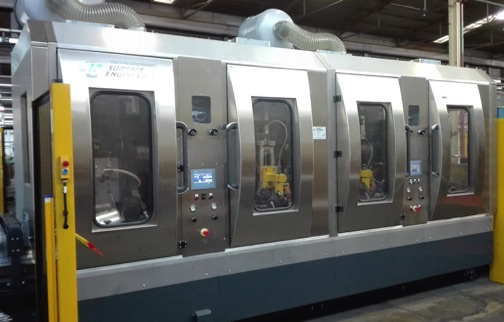

STX - Centerless grinder and polisher

Applications

For model STX

STX MODEL best suits the requirements of medium and high volume of production in different application areas such as furniture manufacturers, stainless steel service centers, round tubes, seamless pipes and bars manufacturers


Applications:

- Welded tubes  - Cosmetic finishing, satin finish or mirror polish

- Surface preparation prior to chrome plating

- Seamless pipes - defects removal and roughness improvement

- Cylinders grinding to the required dimensions

- Bars - grinding for defects removal and roughness improvement with surface homogenisation


- Preparation to hard chrome plating.

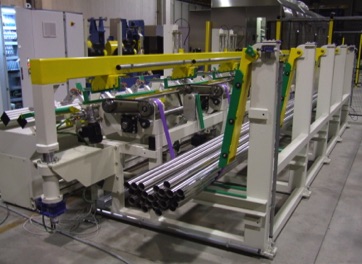

STX - Available with different transport system according to products dimensional range.

Tubes, pipes and bars, (System bundle to bundle)


From 6 to 60 mm  -  From 20 to 150 mm - From 40 to 220 mm

Length from 250 mm up to 30 mt (according to transport system)

Tools used:  Grinding belts or polishing wheels.

Dry process (Dust collector included) or wet process  with (Liquid filtration system included)


MODEL

Workable products

Workable dimensioms

Diameter ranges

Length

Tools used

Working conditions

STX  Technical

Characteristics

(placeholder)

Alternatives to STX


Model ST semi-automatic centerless grinder and polisher


Mdel STO heavy grinder. For  a products of big diameter see as alternative.


Model PLS or PLN for in-line polishing
