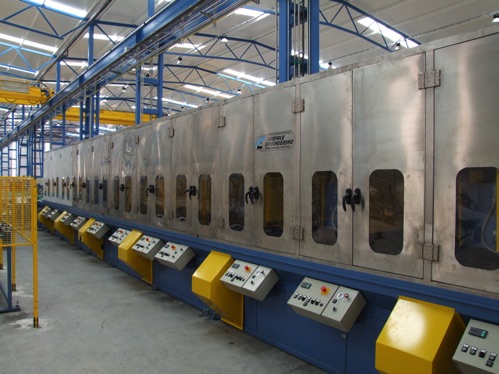

Grinding and polishing machine, modular system that can be configured on customer production requirements, dimensioned for working on medium to big size products, with heavy payload handling system and high performance units.


Suitable to achive a big stock removal on the diameter in order to repair from defects and or create and homogeous surface with target roughness.




MODEL

Workable products

Workable dimensioms

Diameters

Length

Tools used

Working conditions

(placeholder)

Alternatives to STO


Model ST semi-automatic centerless grinder and polisher


Mdel STO centerless grinder for tubes and bars and cylinders


Model PLS or PLN for in-line polishing


This model is available in different configurations according to production volumes


Possible applications:

- Welded tubes  - Cosmetic finishing, satin finish or mirror polish

- Surface preparation and after hard to chrome plating

- Seamless pipes - after extrusion process in order to remove defects and improve roughness

- Cylinders sizing to dimension

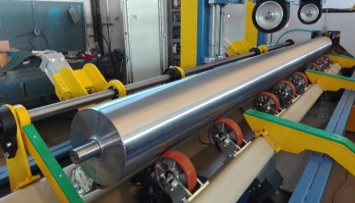

- Roll polishing

- Bars - grinding for defects removal and

   roughness improvement




STO - Available with different transport system and workable range.

Tubes, pipes and bars, bundle to bundle


From 20 to 220 mm  -  From 60 to 350 mm (Other on demand)

Length from 3 up to 14 mt (according to transport system)

Tools used:  Grinding belts or polishing wheels.

Dry with dust collector / Wet with coolant liquid filtration system.
