MODEL:

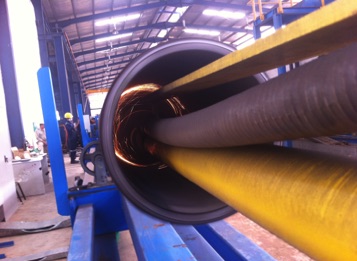

ID - Pipe internal grinder or polisher

Applications

Possible applications are on any round product, either a tube, bar or wire in case of bar to bar, coil to coil or coil to bar systems.


The target results can be for example:



- Defects removal repairing of  semaless pipes


- Roughness improvement for corrosion resistance.


- Cleaning from oxide layer previous to coating operaitons


- Grinding of the internal surface to prepare for NDT tests


For model ID

Internal finitshing of

These machines is studied to make this operation management more easy and solve performances issues in terms of productivity and repeatability.


The machine is fully automatic in set up and in working cycle.

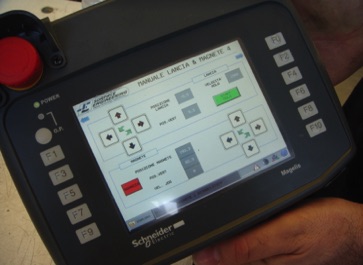

All  adjustments are controlled and visualised,  including recovery of tools wear, adjustment of tools working pressure, step-less adjustment of rotation speed of the machine and of the tools.

PIPES

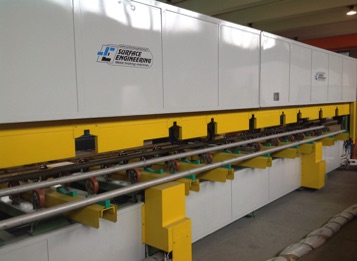

ID- Available with grinding or polishing set up

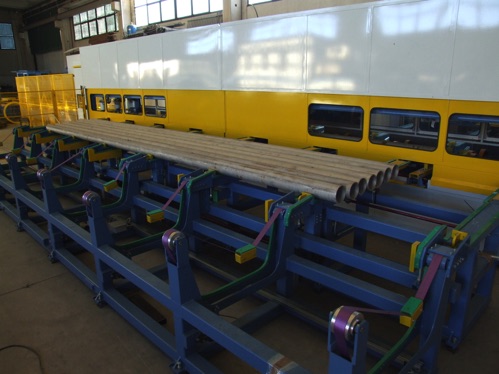

Pipes of different diameter and length


From 20 to  900 mm  -  Different machines

Length from 2,5 mt up to 14 meters

Polishing / Gridning wheels

Dry with dust collector .


MODEL

Workable products

Workable dimensioms

Diameters

Length

Tools used

Working conditions

ID  Technical

Characteristics

SE developed special technology for tubes and pipes internal grinding and polishing, a machine to work with high performances but also  upkeep quality limiting the human work and influece.


The operations are carried out automatically according to programmed working parameters, stored in recipes, and controlled by PLC.


Operator is involved only to supervise the operation and to check finishing quality after the cycle is finished.
